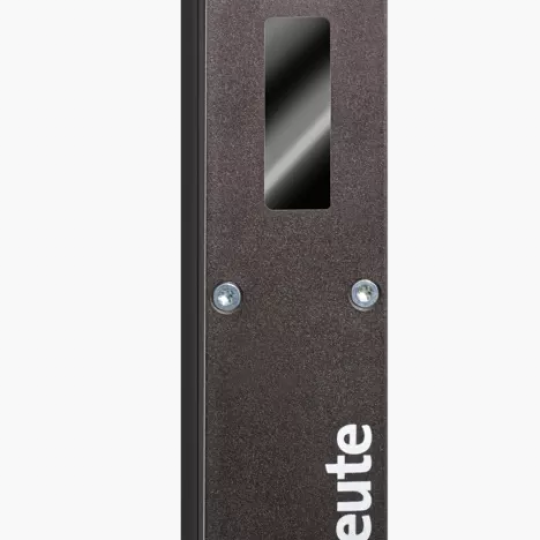

Cảm biến laser không dây Wireless laser sensor RF 96 SDS SW922 LBT 1265597 Steute, RF 96 SDS SW922 LBT 1265597 Steute, Wireless laser sensor RF 96 SDS SW922 LBT

Applied standards

EN 60947-5-2, EN 55011, EN 61000-6-2, EN 61000-6-3, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2

Enclosure

thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0

Tightening torque

M4 enclosure mounting screws: max 1.2 Nm
M2.5 cover screws: approx. 0.45 Nm

Degree of protection

IP54 (IEC/EN 60529)

Sensor

logging with IR laser

Laser class

Class 1 to EN 60825-1; 950 nm

Ambient temperature

0 °C … +65 °C

Operation cycles

max. 1440 telegrams with repetitions/h

Switching frequency

0.33 Hz

Cycle time

3 s

Switching distances

25 cm

Hysteresis

one side, default 4 cm

Standby current

200 µA

Accuracy

± 20 mm

Field of view

27°

Actuating time

min. 20 ms

Note

status signal adjustable via jumper, no, 10 s, 100 s, 1000 s, 10000 s
delivery state: jumper position without status signal
transmission of battery voltage and switching condition

Wireless approvals

Japan: ? ARIB STD-T108: 204-610002
