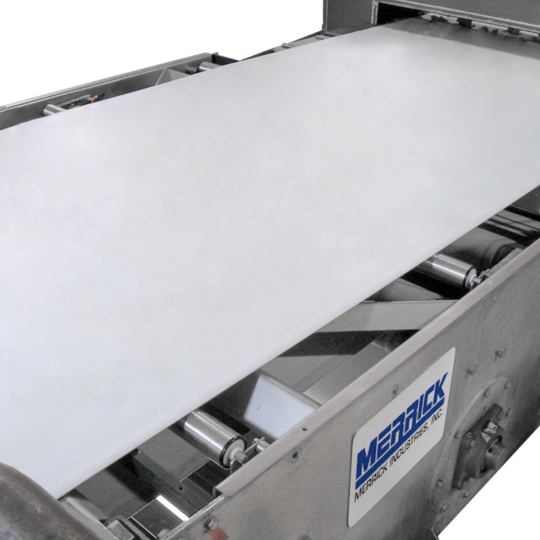

Cân băng tải chính xác Conveyor Belt Scale MODEL 475 SB Merrick, Conveyor Belt Scale Merrick, MODEL 475 SB Merrick

• Speed Sensing Device

  • Magnetic or Optical Speed Sensor
  • Bracket Supplied for Tail (Non-Driven) Pulley Mounting for True Speed Pick-up

  Calibration

  • Electronic
  • Material Test
  • Test Chain (optional)
  • Test Weight (optional)

  Weight Sensing Device

  • Direct Mounted Weigh Suspension (no moving parts)
  • Precision Alignment in both Horizontal and Vertical Planes (critical to accurate weighing)
  • Single Strain Gauge Load Cell

  Connection Box

  • Connections for both Load Cell and Speed Sensor Wires
  • NEMA 4X Enclosure
  • Connects up to (4) Weigh Modules
  • Pulse Cut-Off Switch for measuring belt length

  Accuracy

  • ± 0.5% to 0.25% or better when installed and maintained according to MERRICK instructions
