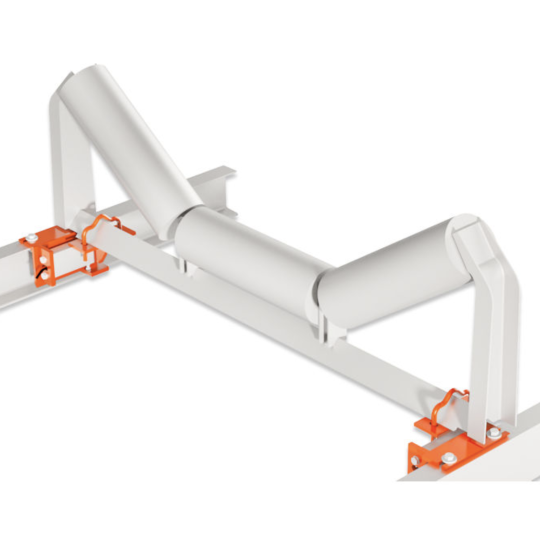

Cân băng tải chính xác Conveyor Belt Scale Model 475EZ Merrick, Conveyor Belt Scale Merrick, Model 475EZ Merrick

• Materials of Construction

  • Painted Carbon Steel
  • All Welds Continuous

  Weight Sensing Device

  • Direct Mounted Weigh Suspension (no moving parts)
  • Precision Alignment in both Horizontal and Vertical Planes (critical to accurate weighing)
  • Dual Strain Gauge Load Cell
    • Stainless Steel, Hermetically Sealed, Temperature and Pressure Compensated
    • 350 Ohm Bridge
    • 2 mV/V Signal
    • 10 to 15 Volts Excitation

  Speed Sensing Device

  • Magnetic or Optical Speed Sensor
  • Bracket Supplied for Tail (Non-Driven) Pulley Mounting for True Speed Pick-up

  Connection Box

  • Connections for both Load Cell and Speed Sensor Wires
  • NEMA 4X Enclosure
  • Connects up to (4) Weigh Modules
  • Pulse Cut-Off Switch for measuring belt length

  Belt Width

  • Fits Belts 12″ to 48″ wide
  • Flat to 45o Trough Angle

  Standard Power Requirements

  • 115/220 Volts, 1 Phase, 60 Hertz
  • 2 Amp Service

  Ambient Temperature Limits

  • -20°C to 60°C (-4°F to 140°F)

  Calibration

  • Electronic
  • Material Test
  • Test Chain (optional)
  • Test Weight (optional)

  Accuracy

  • 1% to 2% or better when installed and maintained according to MERRICK instructions

  Installed Weight

  • 100 Lbs. (45 Kg.) Approximate
