CẦU CHÌ CÔNG TẮC NGẮT Mersen C1069364 Ferraz Shawmut, C1069364, B1069363, D1069365, E1069366, F1069367, G1069368, Ferraz Shawmut, Mersen

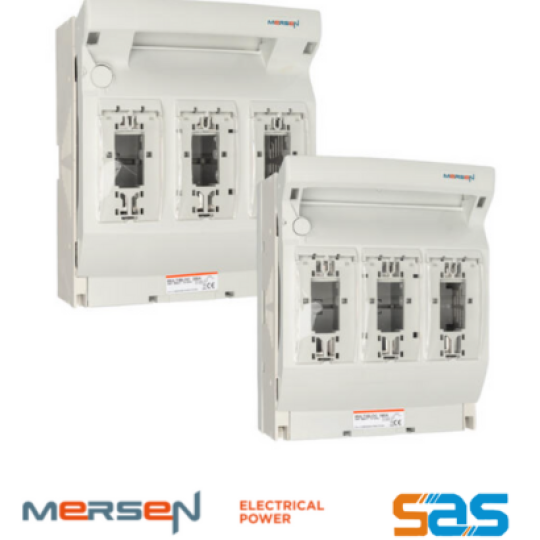

The production programme of MULTIBLOC 800VAC comprises NH fuse switch disconnectors for 800VAC voltage application. This range includes Size 1 (1.ST8) and Size 2 (2.ST8) Multibloc and answers the specific needs of Photovoltaic application for using String inverters rated at 800Vac. They are designed for bottom fitting/panel installation and are available in triple pole units. For installation of MULTIBLOC NH fuse switch disconnectors in distribution units with central cover, respective covers are used to obtain a uniform profile in height and length. MULTIBLOC size 1 and size 2 are designed for NH fuse-links in accordance with IEC/EN 60269, VDE 0636, size 1 and size 2, 160A and 250A. MULTIBLOC offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance

8.000.299 B1069363 3 6 M10 terminal screws 1 piece 2.42 kg
8.001.239 C1069364 3 3 clamp straps 70–150 mm² 3 M10 terminal screws 1 piece 2.42 kg
8.002.562 D1069365 3 6 clamp straps 70-150 mm² 1 piece 2.42 kg
8.000.504 E1069366 3 6 M10 terminal screws 1 piece 3.5 kg
8.001.240 F1069367 3 3 clamp straps 120–240 mm² 3 M10 terminal screws 1 piece 3.5 kg
8.002.563 G1069368 3 6 clamp straps 120–240 mm² 1 piece 3.5 kg
