CẦU CHÌ CÔNG TẮC NGẮT Mersen P1023122 / N1023121 Ferraz Shawmu, Mersen, P1023122, N1023121, Ferraz Shawmu

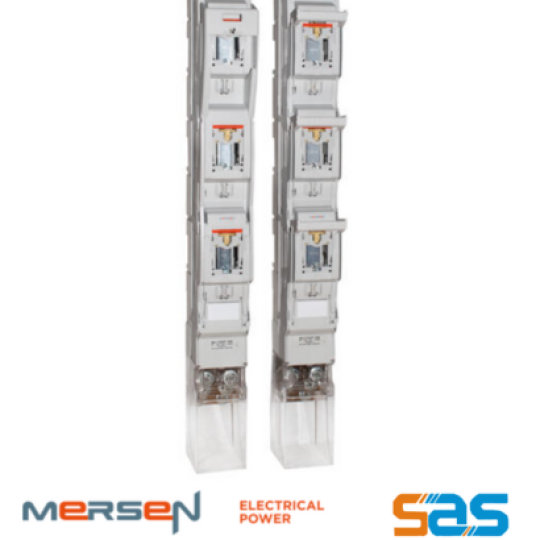

MULTIVERT NH vertical fuse switch disconnectors meet all functions of NH fuse switch disconnectors. They are designed for installation on to bus bars in triple pole arrangements. MULTIVERT main incomers 1000A are for installation on to 185mm bus bar systems. They are ready fitted with solild links 1000A. The system is a modular system, that allows the installation of individual components. MULTIVERT offer the user the possibility of fast and easy installation as well as a high degree of protection during installation and maintenance.

1.762.900 P1023122 M12 multiple termination Al/Cu max. 300 mm² round stranded, sectoral stranded (2 cable lugs), Cu max. 150 mm² round stranded,sectoral stranded (3 cable lugs), M = 32-38 Nm with ready fitted NH-solid links 1000 A 1 piece 11.8 kg

1.712.900 N1023121 M12 multiple termination Al/Cu max. 300 mm² round stranded, sectoral stranded (2 cable lugs), Cu max. 150 mm² round stranded,sectoral stranded (3 cable lugs), M = 32-38 Nm with ready fitted NH-solid links 1000 A 1 piece 11.5 kg
