CẦU CHÌ CÔNG TẮC NGẮT Mersen Q1023146 / G1023138 Ferraz Shawmu, Q1023146, G1023138, M1023143, R1023147, W1023151, P1023145, L1023142, Mersen, Y228756, X1023152, Ferraz Shawmu

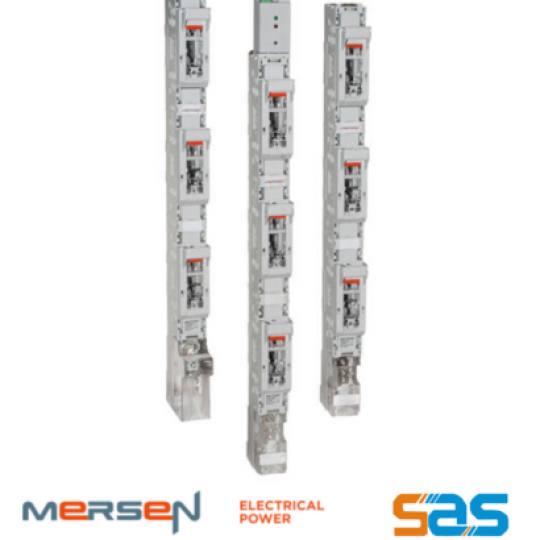

MULTIVERT NH vertical fuse switch disconnectors meet all functions of NH fuse switch disconnectors. They are designed for installation on to bus bars in triple pole arrangements. MULTIVERT 160A 185 mm single pole switching are for installation on to 185 mm bus bar systems. MULTIVERT 160A are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00: 160A. The system is a modular system, that allows the installation of individual components. MULTIVERT offer the user the possibility of fast and easy installation as well as a high degree of protection during installation and maintenance.

M01N0G Y228756 3 M8 terminal screws with cover shroud MZ00KH 1 piece 1.9 kg
M01S0G X1023152 3 clamp straps Cu 4-70 mm² with cover shroud MZ00KH 1 piece 1.9 kg
M01A0G Q1023146 3 Al/Cu clamps 1,5-70 mm² with cover shroud MZ00KH 1 piece 1.9 kg
1.000.910 G1023138 with V-terminal
for V-terminal clamps size 00 with cover shroud 1.000.915 1 piece 1.9 kg
1.001.725 M1023143 V-terminal
with 3 V-terminal clamps size 00 with cover shroud 1.000.915 1 piece 1.1 kg
M01N0E11G R1023147 3 M8 terminal screws MULTIVERT® M01N0G with cabling
of instrument leads 1 piece 2.25 kg
M01S0E11G W1023151 3 clamp straps Cu 4-70 mm² MULTIVERT® M01S0G with cabling
of instrument leads 1 piece 2.25 kg
M01A0E11G P1023145 3 Al/Cu clamps 1,5-70 mm² MULTIVERT® M01A0G with cabling
of instrument leads 1 piece 2.25 kg
1.000.911 L1023142 with V-terminal
for V-terminal clamps size 00
MULTIVERT 1.000.910 with cabling
of instrument leads 1 piece 2.25 kg
