CẦU CHÌ CÔNG TẮC NGẮT Mersen S229878 / Q229876 Ferraz Shawmu, T229879, Q1023054, R1023055, M1023051, P1023053, Q229876, S1023056, R229877, S229878, V1023058, W1023059, X1023060, T1023057, Mersen, Ferraz Shawmu

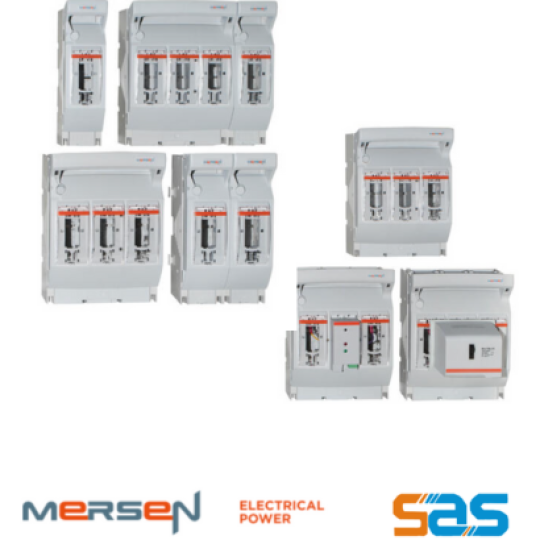

The production programme of MULTIBLOC 1.RST8 comprises NH fuse switch disconnectors for 250A. Products are designed in triple pole units for direct installation on to 40 mm and 60mm bus bar systems. For installation of MULTIBLOC NH fuse switch disconnectors of diŠfrent sizes in distribution units with central cover, respective covers are used to obtain a uniform profile in height and length. MULTIBLOC size 1 are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 1: 250A. The system is a modular system, which allows the installation and combination of individual components. MULTIBLOC oŠers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance.

1.000.323 T229879 3 3 M10 terminal screws - 1 piece 3.09 kg
1.001.294 Q1023054 3 3 clamp straps 70–150 mm² - 1 piece 3.06 kg
1.003.134 R1023055 3 3 M10 terminal screws with electronic fuse monitoring ESÜ
installed (rated voltage = 525VAC) 1 piece 3.14 kg
1.000.855 M1023051 3 3 M10 terminal screws with electro-mechanic fuse monitoring
MZS installed (galvanic isolation) 1 piece 3.8 kg
1.000.936 P1023053 3 6 M10 terminal screws main incomer 1 piece 4.68 kg
1.000.388 Q229876 1 2 M10 terminal screws - 1 piece 1 kg
1.001.818 S1023056 1 2 M10 terminal screws for direct installation on to bus
bars with M10 screws 1 piece 0.91 kg
1.000.397 R229877 2 4 M10 terminal screws 1 piece 2.06 kg
1.000.299 S229878 3 6 M10 terminal screws - 1 piece 2.42 kg
1.001.239 V1023058 3 3 clamp straps 70–150 mm²
3 M10 terminal screws - 1 piece 2.42 kg
1.002.562 W1023059 3 6 clamp straps 70-150 mm² - 1 piece 2.42 kg
1.002.711 X1023060 3 6 M10 terminal screws with electronic fuse monitoring ESÜ
installed (rated voltage=525VAC) 1 piece 2.64 kg
1.000.831 T1023057 3 6 M10 terminal screws with electro-mechanic fuse monitoring
MZS installed (galvanic isolation) 1 piece 3.13 kg
