CẦU CHÌ CÔNG TẮC NGẮT Mersen Y1023153 / B1023133 Ferraz Shawmu, Y1023153, Z1023131, A1023132, B1023133, G1002185, C1023134, D1023135, E1023136, Y1023130, Mersen, F1002184, X1023129, Ferraz Shawmu

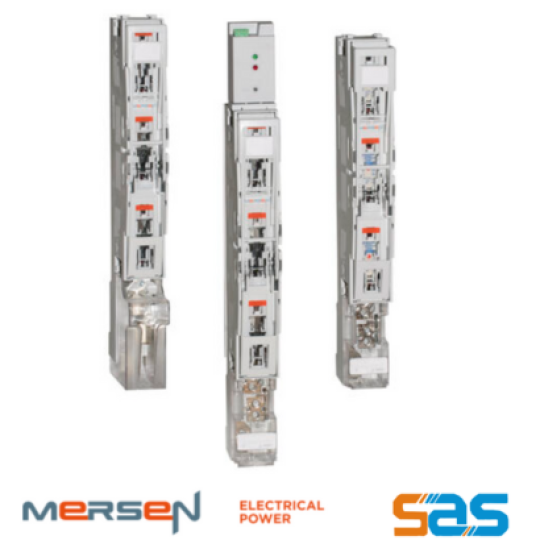

MULTIVERT NH vertical fuse switch disconnectors meet all functions of NH fuse switch disconnectors. They are designed for installation on to bus bars in triple pole arrangements. MULTIVERT® 160A triple pole switching are for installation on to 100 mm and 185 mm bus bar systems. MULTIVERT 160A are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00: 160A. The system is a modular system, that allows the installation of individual components. MULTIVERT offer the user the possibility of fast and easy installation as well as a high degree of protection during installation and maintenance.

1.001.339 Y1023153 3 M8 terminal screws including adjustment cover art.no. MZ00AAD and adapter 1.001.289 1 piece 1.8 kg

1.000.900 F1002184 3 M8 terminal screws with cover shroud MZ00KH 1 piece 1.12 kg
1.000.901 X1023129 3 clamp straps Cu 4-70 mm² with cover shroud MZ00KH 1 piece 1.12 kg
1.000.902 Z1023131 3 Al/Cu clamps 1,5-70 mm² with cover shroud MZ00KH 1 piece 1.12 kg
1.000.903 A1023132 with V-terminal for
V-terminal clamps size 00 with cover shroud 1.000.915 1 piece 1.12 kg
1.000.904 B1023133 3 frame clamps Cu 2,5-70 mm² with cover shroud MZ00KH 1 piece 1.1 kg
1.000.905 G1002185 3 M8 terminal screws MULTIVERT® 1.000.900 with cabling of
instrument leads 1 piece 1.47 kg
1.000.906 C1023134 3 clamp straps Cu 4-70 mm² MULTIVERT® 1.000.901 with cabling of
instrument leads 1 piece 1.47 kg
1.000.907 D1023135 3 Al/Cu clamps 1,5-70 mm² MULTIVERT® 1.000.902 with cabling of
instrument leads 1 piece 1.47 kg
1.000.908 E1023136 with V-terminal
for V-terminal clamps size 00
MULTIVERT 1.000.903 with cabling of
instrument leads 1 piece 1.47 kg
1.002.437 Y1023130 3 frame clamps Cu 2,5-70 mm² MULTIVERT® 1.000.904 with cabling of
instrument leads 1 piece 1.18 kg
