CẦU CHÌ CÔNG TẮC NGẮT Mersen Z1023062 / D1023066 Ferraz Shawmu, D1023066, Z1023062, A1023063, W1002129, F1023068, G1023069, H1023070, E1023067, J1023071, Y1002131, Mersen, M1002167, C1023065, Ferraz Shawmu

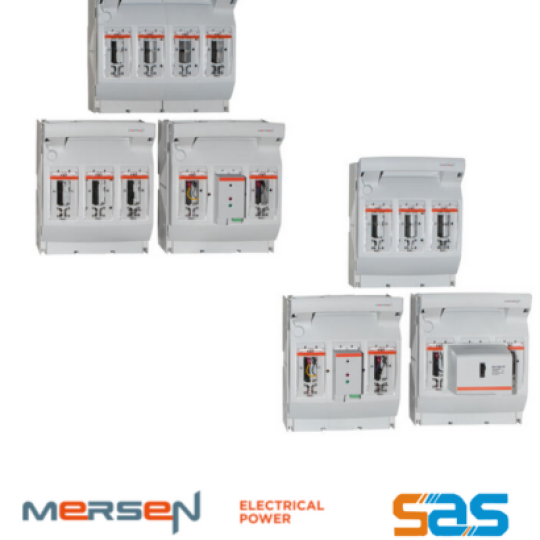

The production programme of MULTIBLOC 2.RST8 comprises NH fuse switch disconnectors for 400A. Products are designed in triple pole units for direct installation on to 40 mm and 60 mm bus bar systems. For installation of MULTIBLOC NH fuse switch disconnectors of different sizes in distribution units with central cover, respective covers are used to obtain a uniform profile in height and length. MULTIBLOC size 2 are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 2: 400A. The system is a modular system, which allows the installation and combination of individual components. MULTIBLOC offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance.

1.000.704 M1002167 3 3 M10 terminal screws - 1 piece 4.77 kg
1.001.295 C1023065 3 3 clamp straps 120–240 mm² - 1 piece 4.61 kg
1.003.135 D1023066 3 3 M10 terminal screws with electronic fuse monitoring ESÜ
installed (rated voltage = 525VAC) 1 piece 4.6 kg
1.000.856 Z1023062 3 3 M10 terminal screws with electro-mechanic fuse monitoring
MZS installed (galvanic isolation) 1 piece 5.28 kg
1.001.028 A1023063 3 6 M10 terminal screws main incomer 1 piece 5.74 kg
1.000.504 W1002129 3 6 M10 terminal screws - 1 piece 3.5 kg
1.001.240 F1023068 3 3 clamp straps 120–240 mm²
3 M10 terminal screws - 1 piece 3.5 kg
1.002.563 G1023069 3 6 clamp straps 120–240 mm² - 1 piece 3.5 kg
1.002.712 H1023070 3 6 M10 terminal screws with electronic fuse monitoring ESÜ
installed (rated voltage=525VAC) 1 piece 3.6 kg
1.000.832 E1023067 3 6 M10 terminal screws with electro-mechanic fuse monitoring
MZS installed (galvanic isolation) 1 piece 4.25 kg
1.001.688 J1023071 4 8 M10 terminal screws - 1 piece 5.04 kg
1.002.379 Y1002131 4 8 M10 terminal screws with ready fitted speacial solid link as neutral conductor in pole 4 for leading and lagging switching
1 piece 5.26 kg
