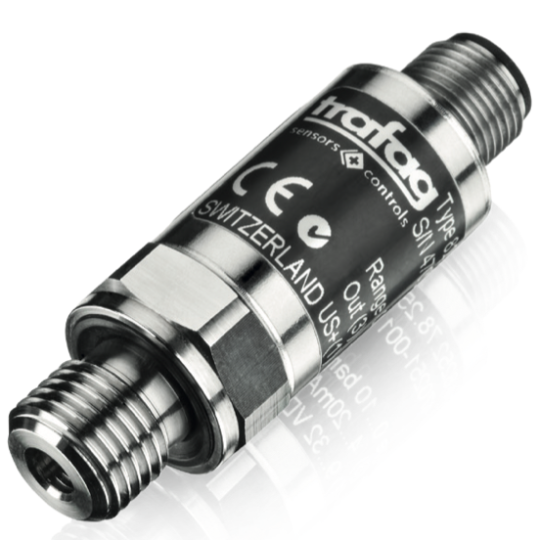

Công tắc áp suất điện tử Electronic Pressure Switch NAT 8254 Trafag Sensors, Electronic Pressure Switch NAT 8254, NAT 8254 Trafag Sensors, NAH0.2A, NAH0.4A, NAH0.6A, NAH1.0A, NAH1.6A, NAH2.5A, NAH4.0A, NAH6.0A, NAH10.0A, NAH16.0A, NAH25.0A, NAH40.0A, NAH100.0A, NAH250.0A, NAH400.0A, NAH600.0A

Technical Data

More Information
Product code	8254
Name	NAH
Designation	Electronic Pressure Switch
Product category	Electronic pressure switches
Measuring range	0 ... 0.2 a 0 ... 600 bar 0 ... 3 a 0 ... 7500 psi
Measuring principle	Thin-film-on-steel
Applications	Hydraulics Machine tools Process technology
Accuracy @ 25°C typ.	± 0.3 % FS typ.
Output signal	Switching output 1 or 2 PNP
Electrical connections	M12x1; Cable IP67 (IP68)
Pressure connections	G1/4" m; G1/4" m (Manometer); G1/4" m with integrated damping; G1/8" m, DIN3852-E; 1/4"NPT m; 1/4"NPT f; 1/8"NPT m; 7/16"-20UNF f, SAE J512; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF m, DIN3866; 9/16"-18UNF m, SAE6 (J1926); R1/4" m, DIN3858; R1/4" m, DIN29
Media temperature	–40°C ... +125°C
Ambient temperature	–40°C ... +125°C (Cable PVC 22: -5°C ... +60°C) (Cable PUR 24: -40°C ... +70°C) (Cable Radox Tenuis 88: -40°C ... +100°C)

Standard products (extra short lead time)

NAH 8254

Code	Cut-off frequency fG	Rise time (10 ... 90 % nominal pressure)	Output signal
			4 ... 20 mA	0.5 ... 4.5 VDC ratiometric	0 ... 6 VDC	0 ... 10 VDC
GA 1)	11 Hz	32 ms	x	x	-	-
GS 1) 2) 14 kHz 29 μs x - - -
GU 1) 2)	20 kHz	18 μs	-	x	-	-
Standard specification 350 Hz 1 ms x x x x

Product No. Type Code Pressure range Over pressure [bar] max. [bar] Supply [VDC] Accuracy @ 25°C typ. [%]
NAH0.2A	8254 68 2317 32 0000 0000 19 33 44 61	0 ... 0.2	1.2	9 ... 32	± 0.8
NAH0.4A 8254 69 2317 32 0000 0000 19 33 44 61 0 ... 0.4 1.2 9 ... 32 ± 0.8
NAH0.6A	8254 70 2317 32 0000 0000 19 33 44 61	0 ... 0.6	1.2	9 ... 32	± 0.8
NAH1.0A 8254 71 2317 32 0000 0000 19 33 44 61 0 ... 1.0 2 9 ... 32 ± 0.6
NAH1.6A	8254 73 2317 32 0000 0000 19 33 44 61	0 ... 1.6	3.2	9 ... 32	± 0.6
NAH2.5A 8254 75 2317 32 0000 0000 19 33 44 61 0 ... 2.5 7.5 9 ... 32 ± 0.3
NAH4.0A	8254 76 2317 32 0000 0000 19 33 44 61	0 ... 4	12	9 ... 32	± 0.3
NAH6.0A 8254 77 2317 32 0000 0000 19 33 44 61 0 ... 6 18 9 ... 32 ± 0.3
NAH10.0A	8254 78 2317 32 0000 0000 19 33 44 61	0 ... 10	30	9 ... 32	± 0.3
NAH16.0A 8254 79 2317 32 0000 0000 19 33 44 61 0 ... 16 48 9 ... 32 ± 0.3
NAH25.0A	8254 80 2317 32 0000 0000 19 33 44 61	0 ... 25	75	9 ... 32	± 0.3
NAH40.0A 8254 81 2317 32 0000 0000 19 33 44 61 0 ... 40 120 9 ... 32 ± 0.3
NAH100.0A	8254 83 2317 32 0000 0000 19 33 44 61	0 ... 100	300	9 ... 32	± 0.3
NAH250.0A 8254 74 2317 32 0000 0000 19 33 44 61 0 ... 250 750 9 ... 32 ± 0.3
NAH400.0A	8254 84 2317 32 0000 0000 19 33 44 61	0 ... 400	1000	9 ... 32	± 0.3
NAH600.0A 8254 86 2317 32 0000 0000 19 33 44 61 0 ... 600 1500 9 ... 32 ± 0.3
