Công tác cầu chì Mersen P1062797 / L1062794 Ferraz Shawmu, N1062796, J1062792, K1062793, G1062790, C1062786, D1062787, P1062797, L1062794, M1062795, H1062791, E1062788, F1062789, Mersen, Ferraz Shawmu

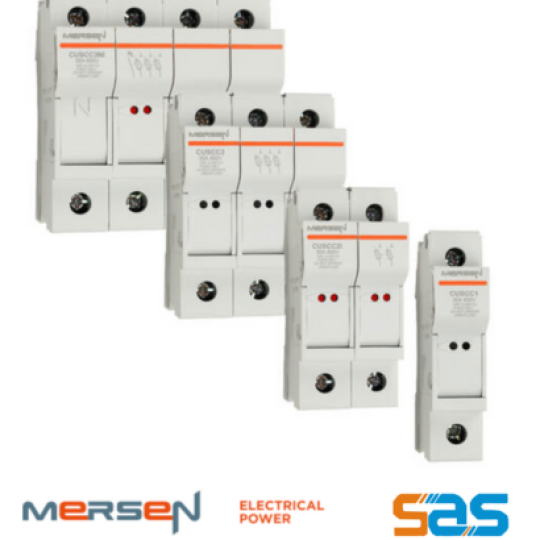

Mersen’s innovative Modulostar CUSCC fuse holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modulostar CUSCC fuse holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. Made of tough and durable thermoplastic or thermoset material. Recommended for use with Mersen Class CC fuse-links: ATDR, ATMR, and ATQR.

CUSCC1 N1062796 1 CUSCC single pole 12 45 g
CUSCC1N J1062792 1 + N CUSCC single pole
+ neutral conductor 6 95 g
CUSCC2 K1062793 2 CUSCC double pole 6 92 g
CUSCC3 G1062790 3 CUSCC triple pole 4 0.14 kg
CUSCC3N C1062786 3 + N CUSCC triple pole
+ neutral conductor 3 0.19 kg
CUSCC4 D1062787 4 CUSCC quadruple pole 3 0.19 k

CUSCC1I P1062797 1 CUSCC single pole - 12 46 g
CUSCC1NI L1062794 1 + N CUSCC single pole
+ neutral conductor - 6 95 g
CUSCC2I M1062795 2 CUSCC double pole - 6 93 g
CUSCC3I H1062791 3 CUSCC triple pole - 4 0.14 kg
CUSCC3NI E1062788 3 + N CUSCC triple pole
+ neutral conductor - 3 0.19 kg
CUSCC4I F1062789 4 CUSCC quadruple pole - 3 0.19 kg
- on demand - Version with special indicator
Standard: 50V-700V
AC/DC
Very low: 20V-50V AC/
DC
- -
