Công tắc khóa liên động an toàn WMR 136001 IDEM Safety, 136001, 136002, 136003, 136004, 136005, 136006

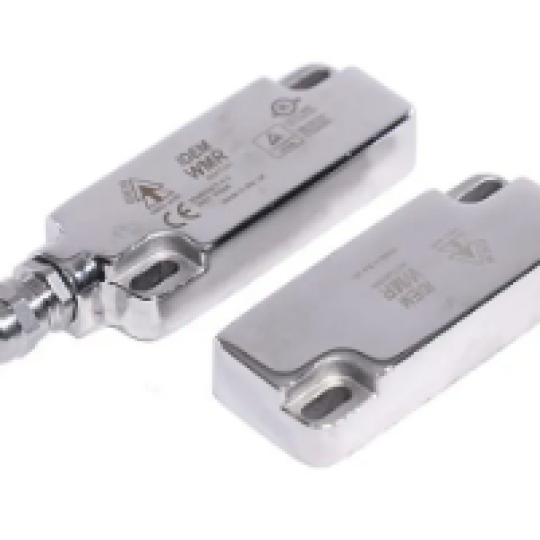

HYGIEMAG non-contact, magnetic safety interlock switches are designed for use on machinery and equipment to ensure the safety of the operators and prevent accidents. The WMR is housed in a robust, 316 stainless steel enclosure and tested to IP69K, suitable for washdown applications.
- Laser Etched Markings
- Contact Configurations up to 2NC + 1NO
- Large Sensing Distance up to 12mm
- 1A Switching Capability or 2A on Heavy-Duty Versions (ac/dc)
- Connectivity via Pre-Wired PVC Cable or M12 Quick Connect
| PART NO. | DESCRIPTION | SAFETY | AUXILIARY | CONNECTION |
|---|---|---|---|---|
| 136001 | WMR 2M ‘2NC’ | 2NC | 0 | 2M PRE-WIRED |
| 136002 | WMR 5M ‘2NC’ | 2NC | 0 | 5M PRE-WIRED |
| 136003 | WMR 10M ‘2NC’ | 2NC | 0 | 10M PRE-WIRED |
| 136004 | WMR QC M12 8way ‘2NC’ | 2NC | 0 | 250mm Leaded M12 8way |
| 136005 | WMR 2M ‘2NC 1NO’ | 2NC | 1NO | 2M PRE-WIRED |
| 136006 | WMR 5M ‘2NC 1NO’ | 2NC | 1NO | 5M PRE-WIRED |
| 136007 | WMR 10M ‘2NC 1NO’ | 2NC | 1NO | 10M PRE-WIRED |
| 136008 | WMR QC M12 8way ‘2NC 1NO’ | 2NC | 1NO | 250mm Leaded M12 8way |
| 136009 | WMR 2M ‘1NC 1NO’ | 1NC | 1NO | 2M PRE-WIRED |
| 136010 | WMR 5M ‘1NC 1NO’ | 1NC | 1NO | 5M PRE-WIRED |
| 136011 | WMR 10M ‘1NC 1NO’ | 1NC | 1NO | 10M PRE-WIRED |
| 136012 | WMR QC M12 8way ‘2NC 1NO’ | 1NC | 1NO | 250mm Leaded M12 8way |
| 136021 | WMR 2M ‘1NC’ | 1NC | 0 | 2M PRE-WIRED |
| 136022 | WMR 5M ‘1NC’ | 1NC | 0 | 5M PRE-WIRED |
| 136023 | WMR 10M ‘1NC’ | 1NC | 0 | 10M PRE-WIRED |
| 136024 | WMR QC M12 8way ‘1NC’ | 1NC | 0 | 250mm Leaded M12 8way |
| 136131 | WMR 2M ‘3NC’ | 3NC | 0 | 2M PRE-WIRED |
| 136132 | WMR 5M ‘3NC’ | 3NC | 0 | 5M PRE-WIRED |
| 136133 | WMR 10M ‘3NC’ | 3NC | 0 | 10M PRE-WIRED |
| 136134 | WMR QC M12 8way ‘3NC’ | 3NC | 0 | 250mm Leaded M12 8way |
