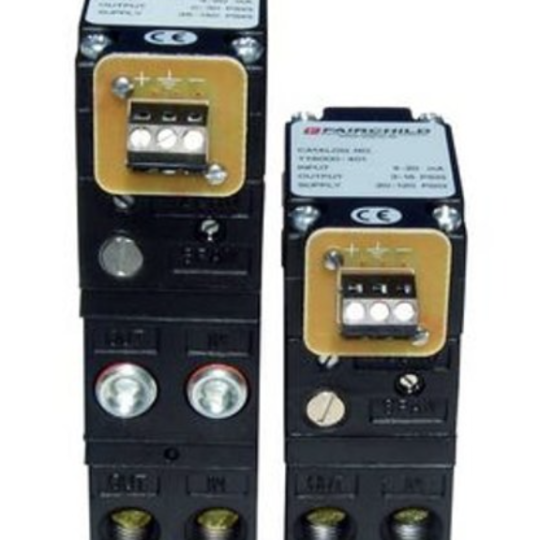

Đầu đo khí nén Electro-Pneumatic Transducer TD-6000-421U Fairchild, TD-6000-421U Fairchild, Đầu đo khí nén TD-6000-421U

INPUT SIGNAL : 4 - 20 mA
OUTPUT PRESSURE : 20 TO 100 kPa
SUPPLY PRESSURE : 150 to 800 kPa
PORT SIZE : 1/4"BSPT
HYSTERESIS/REPEATBILITY : 0.25% FS
ELECTRICAL CONN : DIN43650
FAIRCHILD MAKE CURRENT TO PRESSURE TRANSDUCER
Model: TD-6000-422U (TD6000 422U)
INPUT SIGNAL : 4 - 20 mA
OUTPUT PRESSURE : 20 TO 180 kPa
SUPPLY PRESSURE : 220 to 800 kPa
PORT SIZE : 1/4"BSPT
HYSTERESIS/REPEATBILITY : 0.25% FS
ELECTRICAL CONN : DIN43650
