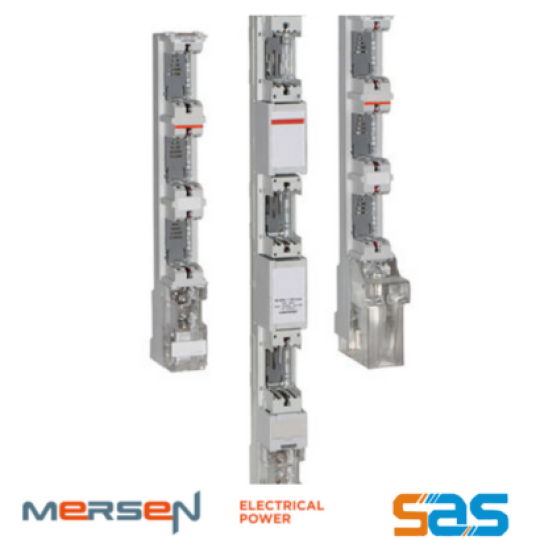

Đường ray cầu chì dọc Mersen V1023426 / P1023421 Ferraz Shawmut, R1002286, R1023423, T1023425, V1023426, W1023427, M1023419, S1002287, P1023421, Q1023422, Ferraz Shawmut, Mersen

BSL NH-vertical fuse rails are touch protected IP20. BSL are designed for direct installation on to bus bar systems in triple pole arrangements. BSL size 00, 160A are available in designs for 100 mm and 185 mm bus bar systems. BSL 160A are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00: 160A. The system is a modular system that allows the installation of individual components. BSL offers the user the possibility of fast and easy installation as well as a high degree of protection during installation and maintenance.

1.002.440 R1002286 3 M8 terminal screws with cover shroud MZ00KH 1 piece 0.83 kg
1.002.441 R1023423 3 clamp straps Cu 4-70 mm² with cover shroud MZ00KH 1 piece 0.88 kg
1.002.442 T1023425 3 Al/Cu clamps 1,5-70 mm² with cover shroud MZ00KH 1 piece 0.84 kg
1.002.443 V1023426 with V-terminal for V-terminal clamps size 00 with cover shroud 1.000.915 1 piece 0.88 kg
1.002.444 W1023427 3 frame clamps Cu 2,5-70 mm² with cover shroud MZ00KH 1 piece 0.82 kg
01BSLA100 M1023419 3 Al/Cu clamps 1,5-70 mm² with cover shroud MZ00KH 3 pieces 2 kg
01BSLN100 S1002287 3 M8 terminal screws with cover shroud MZ00KH 1 piece 2 kg
01BSLS100 P1023421 3 clamp straps Cu 4-70 mm² with cover shroud MZ00KH 2 pieces 2 kg
1.000.913 Q1023422 with V-terminal for V-terminal clamps size 00 with cover shroud 1.000.915 4 pieces 2 kg
