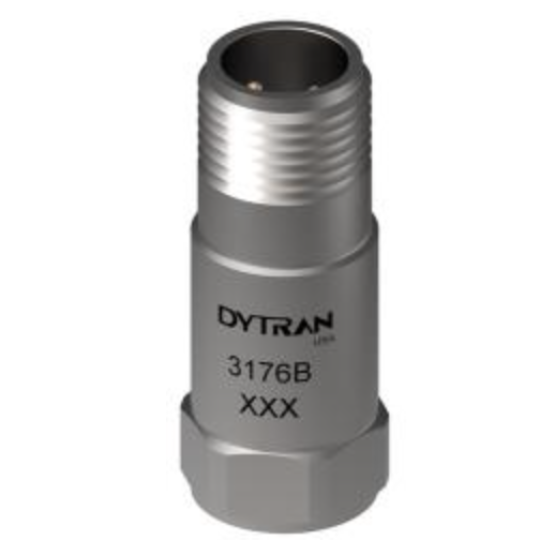

Gia Tốc Công Nghiệp 3176B / 3176B1 Dytran Instruments, 3176B1 Dytran, 3176B Dytran

The Dytran series 3176 is a rugged, cost effective IEPE piezoelectric accelerometer offered in sensitivities of 10 mV/g and 100 mV/g with an excellent low frequency response of 0.3 Hz.

Design of the series 3176 incorporates a ceramic shear sensing element, packaged in a stainless steel housing with a 2–pin MIL–C–5015 axial connector. Series 3176 is hermetically sealed for reliable operation in high humidity and dirty environments and internally case isolated to avoid EMI/ground loop interference.
