Gia tốc kế 3344C Dytran Instruments, 3344C Dytran, 3344C, Dytran

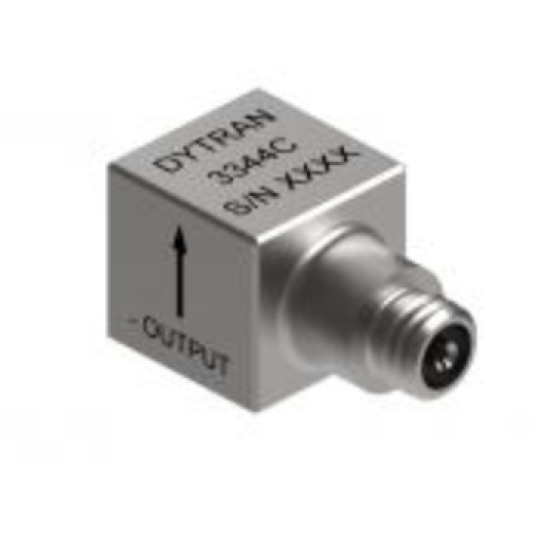

The Dytran model 3344C is a high temperature piezoelectric accelerometer, designed to reliably operate in temperatures up to +500°F (+260°C) with charge mode capabilities.

Featuring a unique single crystal charge mode sensing element mounted in a hermetically sealed, miniature alloy housing, series 3344C utilizes the latest in planar shear technology.

The Dytran series 3344C weighs 6.5 grams and has a miniature design, making it ideal for use in locations inaccessible to other types of accelerometers. Offered with a sensitivity between 1 to 2 pC/g and up to a 10,000 Hz upper frequency response, model 3344C has a 10–32 tapped hole and 10–32 radial connector. (Exact sensitivity is provided on the calibration certificate supplied with each sensor.)
