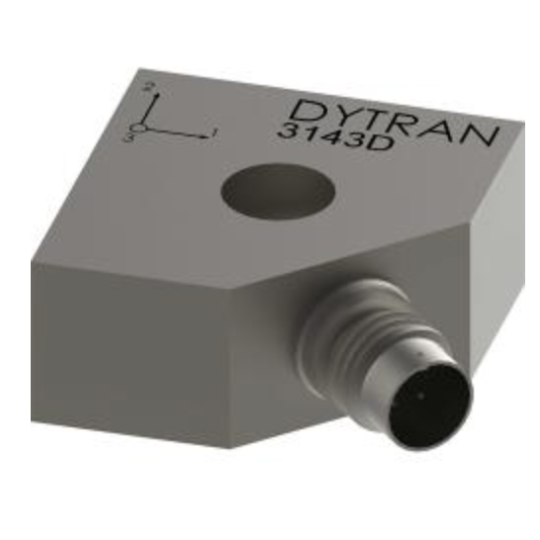

3143D

  10 mV/g sensitivity, 500g range, 4–pin 1/4–28 radial connector, 6–32 thru hole mount, 14 grams, 360° cable orientation, low profile,–60 to +185°F Operation

3143D10

1 mV/g sensitivity, 5000g range, 4–pin Glenair (800–013–03Z16–4PN) connector, 10–32 thru hole mount, 65 grams, 360° cable orientation, mechanically and electrically fitered,–60 to +250°F Operation

3143D13

1 mV/g sensitivity, 5000g range, 4–pin 3/8–28 (Glenair) radial connector, 6–32 thru hole mount, 60 grams, mechanically & electrically filtered, integral cable with low outgassing boot,–60 to +250°F Operation

3143D14

2.5 mV/g sensitivity, 2000g range, 4–pin 3/8–28 (Glenair) radial connector, 6–32 thru hole mount, 35 grams, integral cable with low outgassing boot, stainless steel,–60 to +185°F Operation

3143D1T

  100 mV/g sensitivity, 50g range, 4–pin 1/4–28 radial connector, 6–32 thru hole mount, 15 grams, 360° cable orientation, low profile,–60 to +185°F Operation,–40 to +185°F TEDS Operation

3143D2

  50 mV/g sensitivity, 100g range, 4–pin 1/4–28 radial connector, 6–32 thru hole mount, 14 grams, 360° cable orientation, low profile,–60 to +185°F Operation

3143DT

  10 mV/g sensitivity, 500g range, 4–pin 1/4–28 radial connector, 6–32 thru hole mount, 15 grams, 360° cable orientation, low profile,–60 to +185°F Operation,–40 to +185°F TEDS Operation

3143M16

10 mV/g sensitivity, 500g range, 4–pin 3/8–28 (Glenair) radial connector, 6–32 thru hole mount, 50 grams, cryogenic, compatible with 6380AXX cable and 6381AXX cable,–320 to +250°F Operation
