Gia tốc kế ba trục 3543A Dytran Instruments, 3543A Dytran, 3543A, Dytran

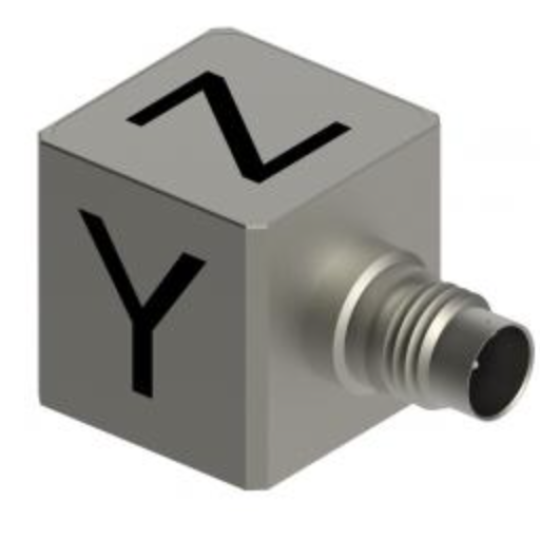

The Dytran model 3543A is a case isolated triaxial IEPE accelerometer with a 100 mV/g sensitivity, vertical height of 0.60–inches (15.24–millimeters) and an overall weight of 15 grams.

Featuring ceramic shear sensing elements packaged in a lightweight titanium housing, design of the model 3543A incorporates a 4–pin radial connector and 10–32 stud mounting capabilities. Units are hermetically sealed for reliable operation in high humidity and dirty environments and case isolated to avoid EMI/ground loop interference.
