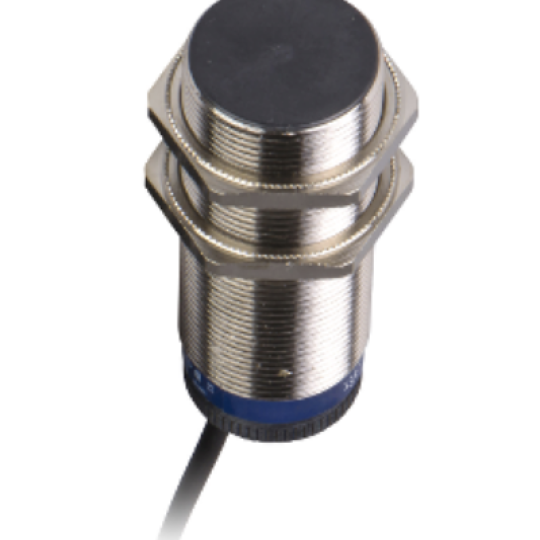

Inductive proximity sensors Cảm biến tiệm cận XSAV11373 Schneider, XSAV11373 Schneider

Sensing range > 8...15 mm
Adjustable frequency range 6...150 cyc/mn
Operating zone 0...8 mm
Differential travel 3...15% of Fr
Repeat accuracy 3% of Sr
Cable composition 3 x 0.34 mm²
Wire insulation material PvR
Status LED 1 LED red for output state
Supply voltage limits 10...58 V DC
Switching frequency <= 100 Hz
Voltage drop <= 1.8 V at closed state
Current consumption 0...15 mA at no-load
Run-up delay at power-up 9 s standard
Marking CE
Threaded length 57 mm
Height 30 mm
Length 81 mm
Product weight 0.3 kg
