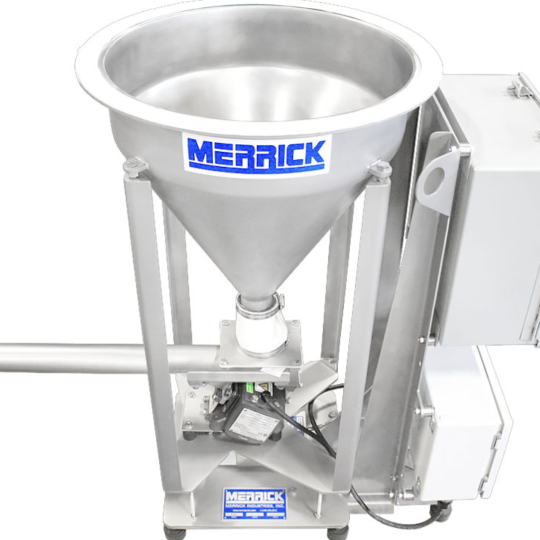

Máy cấp liệu băng tải cân WEIGH BELT FEEDERS MODEL 530 MERRICK, MODEL 530 MERRICK, MODEL 570 MERRICK, MODEL 520 MERRICK

• Platform Scale

  • 304 Stainless Steel, low profile construction
  • Precision strain gauge load cell with temperature and barometric compensation

  Hopper

  • 1.0Ft³ -15.0 Ft³ Volume Hopper
  • All Welds Continuous
  • Material Conditioner/Agitator by Overwind Helix
  • Drive Motor Speed Controller
    • LED Status Indicators
    • Start/Stop Switch
    • Potentiometer Speed Control 0%-100%
    • NEMA 4X, IP-65 Enclosure
    • 50:1 Auger Speed Reduction without any mechanical changes
    • Current Limiter for Auger Protection

  Accuracy

  • ± 0.5% Continuous
  • ± 0.1% Batching

  Feed Rates

  • 1 to 2,400 Lbs/Hr

  Gravimetric Turndown

  • 115 Volts, 1 Phase, 60 Hertz
  • 15 Amp Service

  Available Accessories

  • Special Materials of Construction
  • Hopper Vibrator
  • Extended Discharge Tray Length
  • Hazardous Location Components
  • Larger Capacity Hopper

  Control

  • Genetix® Controller
  • Continuous, Batching and Rate-Controlled Batching Loss-in-Weight Applications
  • Communication Interfaces:
    • MERRICK Serial Communications Protocol
    • Modbus ASCII, Modbus +
    • DeviceNET, ControlNET
    • DF1, Datahighway +
