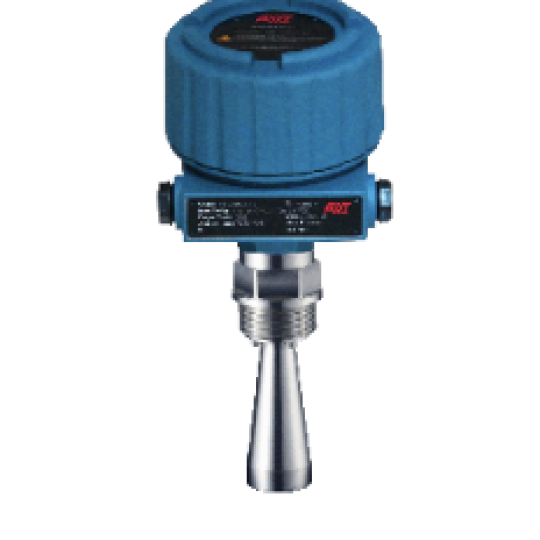

Máy đo mức siêu âm AVI-DR AVI Australia Victory Instrumenst, AVI-DR05, AVI-DR06, AVI-DR07, AVI-DR08, AVI-DR09, AVI-DR Radar Lever Meter

                                                           AVI-DR05                                                           AVI-DR06


Application:                                 Liquid                                                    Liquid
                                                                  Level measurement in liquids,                   Level measurement in liquids, under certain
                                                 especially highly erosive liquids                 temperature and pressure, mildly erosive liquids

Max Measurement Range:            10m; 30m(Horn 80mm)                           30m
Measurement Accuracy:              ±5mm                                                  ±3mm

Process Temperature:                 (-40～130) ℃                       (-40～80) ℃
                                                              (-40～130) ℃
                                                              (-60～250) ℃
                                                              (-60～400) ℃

Process Pressure:                     (-0.1～0.3)MPa                                      Normal

                                                                                                                                                (-0.1～4)MPa
Frequency Range:                      26GHz                                                   26GHz
Signal Output:                           (4～20)mA/HART                                   (4～20)mA/HART

Power:                                     2-wire(DC24V)                                        2-wire(DC24V)

                                               4-wire(DC24V/AC220V)                           4-wire(DC24V/AC220V)
LCD:                                       Optional                                                   Optional
