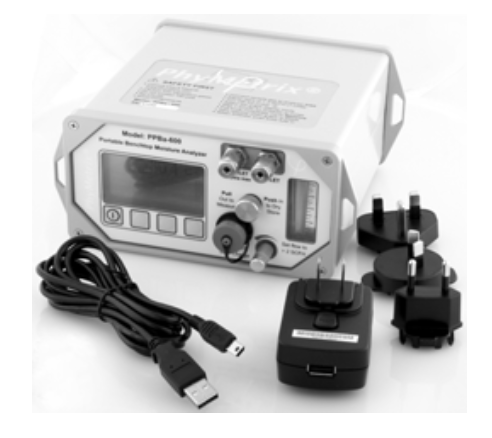

Máy phân tích độ ẩm để bàn PhyMetrix PPBa

Includes:

-100°C to +20°C dewpoint Sensor range 316 Stainless Steel and PTFE wetted parts 1/8” Swagelok® compression fittings Aluminum enclosure

On-screen histogram/trend graph

Built-in temperature compensation Integral Sensor desiccant storage chamber USB data interface, also charges battery Battery backed clock calendar Programmable data logging

Continuous status/diagnostics display Built-in metering valve and flow meter

Mã sản phẩm:
Giá:
Liên hệ
Lượt xem:
927

Thông tin sản phẩm
Bình luận

Máy phân tích độ ẩm để bàn PhyMetrix PPBa, PPBa, PhyMetrix, PPBa PhyMetrix, PhyMetrix Benchtop Moisture Analyzer, PPBa-I, PPBa-P, PPBa-A, PPBa-V, PPBa-P-I, PPBa-A-I, PPBa-A-V

Moisture Sensor	Range: -110°C to +20°C dewpoint ( -166°F to +68°F dewpoint ) Accuracy: ±2°C (3.6°F) temperature correcte Repeatability: 0.8°C (1.5°F) Response time: 95% of step change in 3 min. Sample flow: >1 LPM
Temperature Sensor	Range: -40°C to +70°C (-40°F +158°F) Accuracy: ±2°C (3.6°F)
Pressure Sensor	2 to 150 PSIA ±1%, 316L stainless steel wetted parts
Ergonomics	Easy to carry or use on desktop, lightweight 3.5 Lbs Easy to read graphic LCD display with user controlled backlight brightness (LCD is readable without the backlight) Snap dome tactile membrane switches with dynamically assigned legends Audible feedback upon button press as well as for warnings and alarms Auto scaling graph / histogram on moisture measurement display for stability verification Easy to use with verbose built-in context sensitive Help screens Battery Saver, with user selectable Auto-power-down times, can also be disabled Built-in pressure measurement and pressure corrected moisture readings, simultaneously displayed with the uncorrected reading for greater ease of understanding Verbose Status bar with indications, warnings and audible errors User selectable locking with or without a password. Built-in battery backed clock calendar
Electrical	External AC Universal Power adapter (100-240VAC 50-60Hz) with USB connector Rechargeable Li-Ion battery, recharges through the USB connector from the PC or from the supplied universal power adapter Sampling system and sensor are isolated from electrical interface and supply grounds Measurement resolution of moisture sensor: 1pF resulting in less than 0.01°C External power and I/O: USB mini B female connector – IP67 / IP68 with Sealing Cap
Mechanical	1/8″ Swagelok® Inlet and Outlet bulkhead fittings All 316 Stainless Steel and PTFE wetted parts, small surface area stainless steel sampling chamber for fast response time. Integral Sensor retraction into desiccant storage chamber for fast response-time when measuring low moisture Enclosure Extruded aluminum Dimensions- L: 7.83″ (199mm) W: 6.38″ (162mm) H: 3.32″ (84mm) Weight Total: 3.5 Lbs (1.6 Kg) Pressure: Inlet 2000 psi (137 bar) Outlet 50 psi (3.4 bar)
Temperature Range	PPBa Analyzer: -20°C to +60°C Electronics: -40°C to +85°C Moisture Sensor: -20°C to +60°C Pressure Sensor: -20°C to +85°C LCD operating: -20°C to +70°C storage: -30°C to +80°C
Miscellaneous Features	NIST traceable calibrations Built-in metering valve and flow meter, no need for external pressure regulator etc… Units of measure: °C & °F dewpoint, ppmV, ppmW, µB H₂O vapor pressure, grams of H₂O / m³, Lbs H₂O /10⁶ standard cubic feet in Natural Gas. (All units auto-scaled) Digital & Analog I/O: USB, 4/20mA with HART® Data logging – single point, multipoint, time stamping, each sample records: dewpoint, temperature and pressure, ( memory > 4,000 samples) Built-in Vacuum Pump Option, for low pressure or sub atmospheric sample sources. Includes internal dedicated rechargeable battery and external charger. Virtual Analyzer PC software for training and evaluation, allows the user to experience the exact interface on their own PC with voice explanations

ORDERING INFORMATIONPART NUMBERPhyMetrix Portable Benchtop Analyzer Model: PPBa
Included Accessories: USB cable (mini B male to A male) AC universal power adapter with USB connectorPPBaPressure Sensor Option 0-150 PSIA W/ Automatic Pressure Correctionsuffix -PAnalog Output 4/20 mA with HART® Optionsuffix -AIntrinsically Safe ATEX Optionsuffix -IVacuum Pump (built-in), includes high capacity internal battery and external chargersuffix -V
