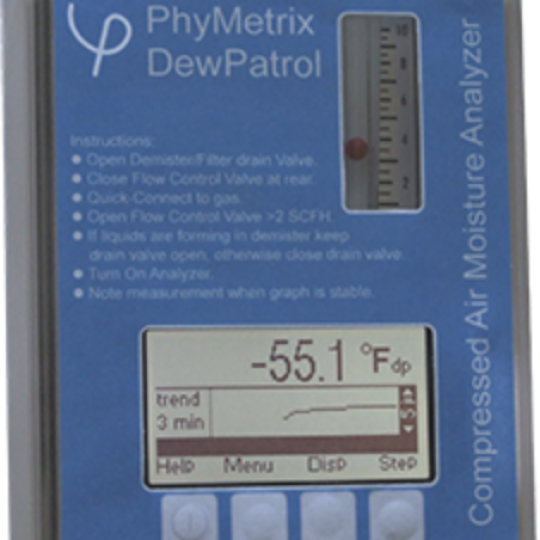

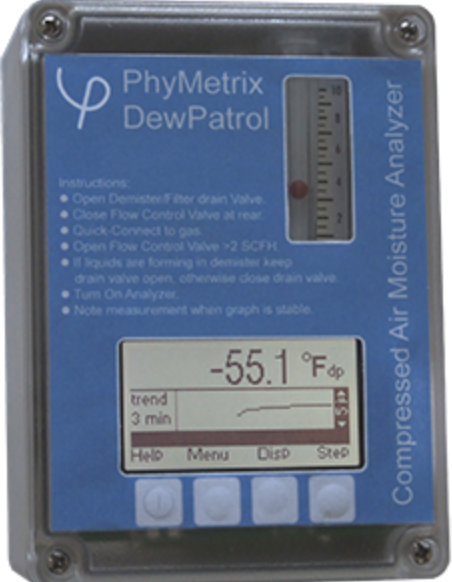

Máy phân tích độ ẩm PhyMetrix DewPatrol PDPa

Includes:

-100°C to +20°C dewpoint Sensor range On-screen histogram/trend graph Built-in temperature compensation

USB data interface, also charges battery Battery backed clock calendar Programmable data logging

Continuous status/diagnostics display

Built-in metering valve and flow meter

Integral demister, 360° contaminants view & drain valve Swiveling Quick Connect

Mã sản phẩm:
Giá:
Liên hệ
Lượt xem:
928

Thông tin sản phẩm
Bình luận

Máy phân tích độ ẩm PhyMetrix DewPatrol PDPa, PhyMetrix DewPatrol PDPa, PhyMetrix DewPatrol, PDPa, PhyMetrix DewPatrol Moisture Analyzer, PDPa-P, PDPa-A, PDPa-W, PDPa-P-A,PDPa-P-V, PDPa-P-A-R, PDPa-P-R

Moisture Sensor	Range: -110°C to +20°C dewpoint ( -166°F to +68°F dewpoint ) Accuracy: ±2°C temperature corrected Repeatability: 0.8°C Response time: 95% of step change in 3 min. Sample flow: >1 LPM
Temperature Sensor	Range: -40°C to +70°C Accuracy: ±2°C
Pressure Sensor (optional)	2 to 300 PSIA ±1%, 316L stainless steel wetted parts, higher pressures can be ordered optionally
Flow meter	Body: Styrene Acrylonitrile, Max Pressure: 50 psi (3.4 bar) [ this pressure limitation is for the exhaust ]
Inlet Metering Valve	Max pressure: 300 psi (20 bar) [ this pressure limitation is for the inlet, and can be utilized only if outlet is unrestricted]
Ergonomics	Easy to carry or use on desktop, lightweight 2 Lbs Easy to read graphic LCD display with user controlled backlight brightness (LCD is readable without the backlight) Snap dome tactile membrane switches with dynamically assigned legends Audible feedback upon button press as well as for warnings and alarms Auto scaling graph/histogram on moisture measurement display for stability verification Easy to use with verbose built-in context sensitive Help screens Battery Saver, with user selectable Auto-power-down times, can also be disabled Built-in pressure measurement and pressure corrected moisture readings, simultaneously displayed with the uncorrected reading for greater ease of understanding Verbose Status bar with indications, warnings and audible errors User selectable locking with or without a password. Built-in battery backed clock calendar
Electrical	External AC Universal Power adapter (100-240VAC 50-60Hz) with USB connector Rechargeable Li-Ion battery, recharges through the USB connector from the PC or from the supplied universal power adapter Sampling system and sensor are isolated from electrical interface and supply grounds Measurement resolution of moisture sensor: 1pF resulting in less than 0.01 ̊C External power and I/O: USB mini B female connector – IP67 / IP68 with Sealing Cap Alarm Relay Option – 3A, 250VAC30VDC contacts AV alarm >80 dB @ 3′, 3 jumbo Red LEDs 5100 mcd each, complies with NFPA99, 1996 edition
Mechanical	Enclosure ABS (UL94-HB), with EDPM gasket to meet IP65, NEMA-4X Dimensions H: 5.71″(145mm) W: 4.13″(105mm) D: 2.56″(65mm) Weight Total: 2 Lbs (~1 Kg) 1/4″ NPT Female Swivel inlet, allowing connection with standard quick connect Aluminum and Viton wetted parts, small surface area sampling chamber for fast response time. Pressure: Inlet 300 psi (20 bar) Outlet 50 psi (3.4 bar)
Temperature Range	dewPatrol Analyzer: -20°C to +60°C Electronics: -40°C to +85°C Moisture Sensor: -20°C to +60°C Pressure Sensor: -20°C to +85°C LCD operating: -20°C to +70°C storage: -30°C to +80°C Enclosure: -40°C to +60°C
Miscellaneous Features	NIST traceable calibrations Units of measure: °C & °F dewpoint, ppmV, ppmW, µB H₂O vapor pressure, grams of H₂O / m³, Lbs H₂O /10⁶ standard cubic feet in Natural Gas. (All units auto-scaled) Digital & Analog I/O: USB, 4/20mA with HART® Data logging – single point, multipoint, time stamping, each sample records: dewpoint, temperature and pressure, ( memory > 4,000 samples) Virtual Analyzer PC software for training and evaluation, allows the user to experience the exact interface on their own PC with voice explanations

ORDERING INFORMATIONPART NUMBERPhyMetrix DewPatrol Moisture Analyzer Model: PDPa
Included Accessories: USB cable (mini B male to A male), AC universal power adapter with USB connectorPDPaPressure Sensor Option 0-150 PSIA W/ Automatic Pressure Correctionsuffix -PAnalog Output 4/20 mA with HART® Optionsuffix -AAC powered option (comes with AC power cord instead of USB)suffix -WAlarm Relay option (only with AC powered option)suffix -RAudio-Visual Alarm option (only with AC powered option)suffix -L
