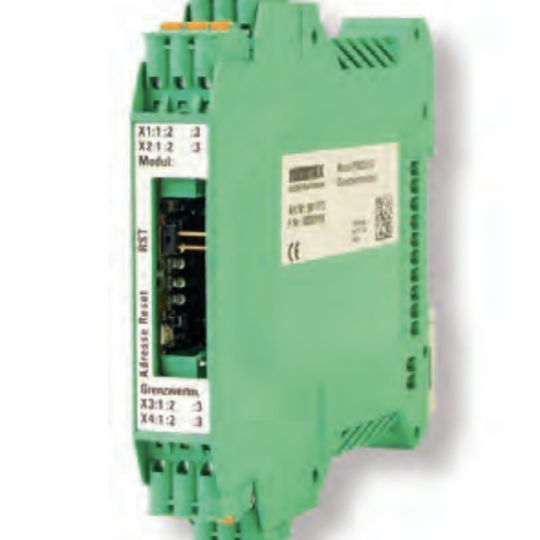

Module tín hiệu Conventional detector module 140ACO13000 901773 Minimax, 140ACO13000 Minimax, 901773 Minimax

Technical specifications

Operating voltage 19 V - 29 V DC

Quiescent current 2 mA - 50 mA DC Line voltage 9 V - 20 V DC Alarm current 5 mA - 80 mA DC Terminating resistor 1.8 kW Number of detector groups 4, quiescent current controlled Number of detectors per line 32 pieces (VdS) Max. terminal cross-section 2.5 mm2 (AWG 13) Ambient temperature -5 °C to +40 °C (+23 °F to +104 °F) Relative humidity (IEC 721-3-3) max. 95 % no condensation IP rating (EN 60529) IP 20 Enclosure Polyamide PA6.6, green Installation position vertical Mounting Mounting rail 35 mm DIN 46277, top hat profile Weight 120 g (0.26 lbs) Dimensions 17.5 x 99 x 114.5 mm (WxHxD) 0.7 x 3.9 x 4.5 inch (WxHxD)
