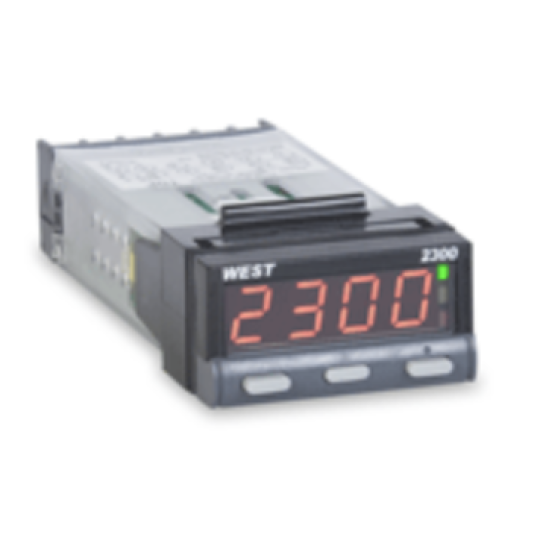

N2300 Single Loop Controller WEST Control Solutions, WEST Control Solutions, N2300, West-CS

The West N2300 offers real flexibility as it can be used as a controller or an indicator.

The instrument has the largest red or green digital display in a 1/32 DIN package. In addition to the red or green display the N2300 benefits from three additional multi-colour LEDs to indicate process, alarm and configuration statuses.

The large, tactile rubberized keys provide a more practical human interface which is complemented with a specially developed hands-free PID tuning algorithm, Easy-Tune, which continuously monitors and improves control. Alternatively the instrument can be manually fine-tuned for a specific application. The N2300 indicator has up to to two outputs (relay or solid state driver) for alarm. The controller version can have an additonal relay or RS232 serial communications.

• Simple straight forward operation for easy setup
• Largest 4 digit red/green digital display in a 1/32 DIN package
• PID control for (auto-tuning) hands-free operation with manual override tune capability for specialized applications
• Solid state relay SSR for primary control and alarming
• Optional second alarm relay (option) or RS-485 communication
