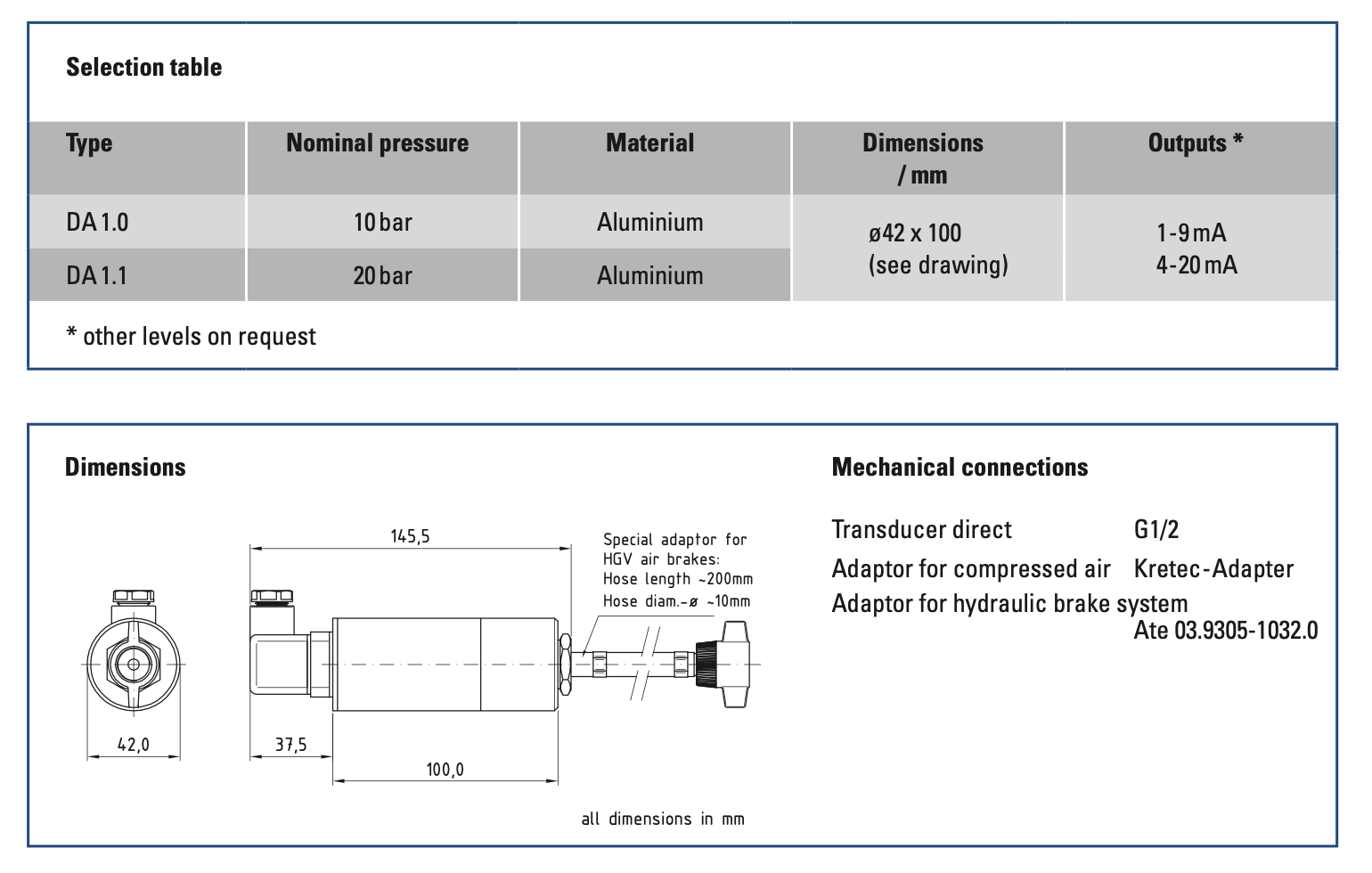

Description DA

HKM pneumatic pressure transducers are used for measuring static and dynamic relative pressures. They are designed for ranges up to 10 or up to 20 bar. These transducers were specially developed for vehicle brake testing, but can also be used for other pressure measurements. The sensor can be connected directly to a pressure vessel.

Depending on the version, various analogue output ranges are available. The pneumatic pressure transducer is fitted with an integrated measuring am- plifier.

Features

For (pneumatic and hydraulic) pressures Available in ranges of 10 and 20 bar Encased design, P 65
Analogue output

ntegrated measuring amplifier

Applications

Pressure measurement Brake pressure measurement on vehicles

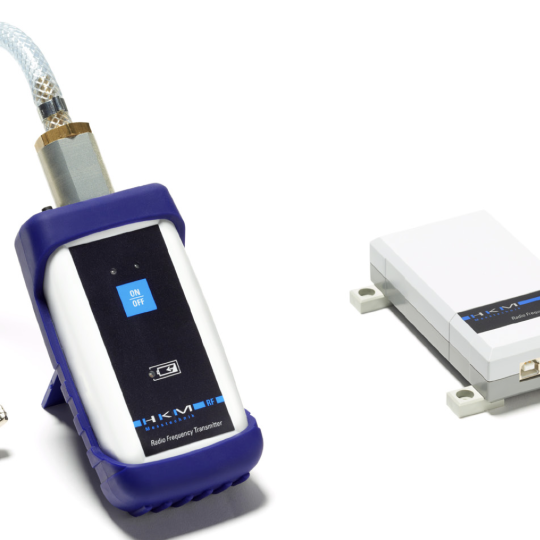

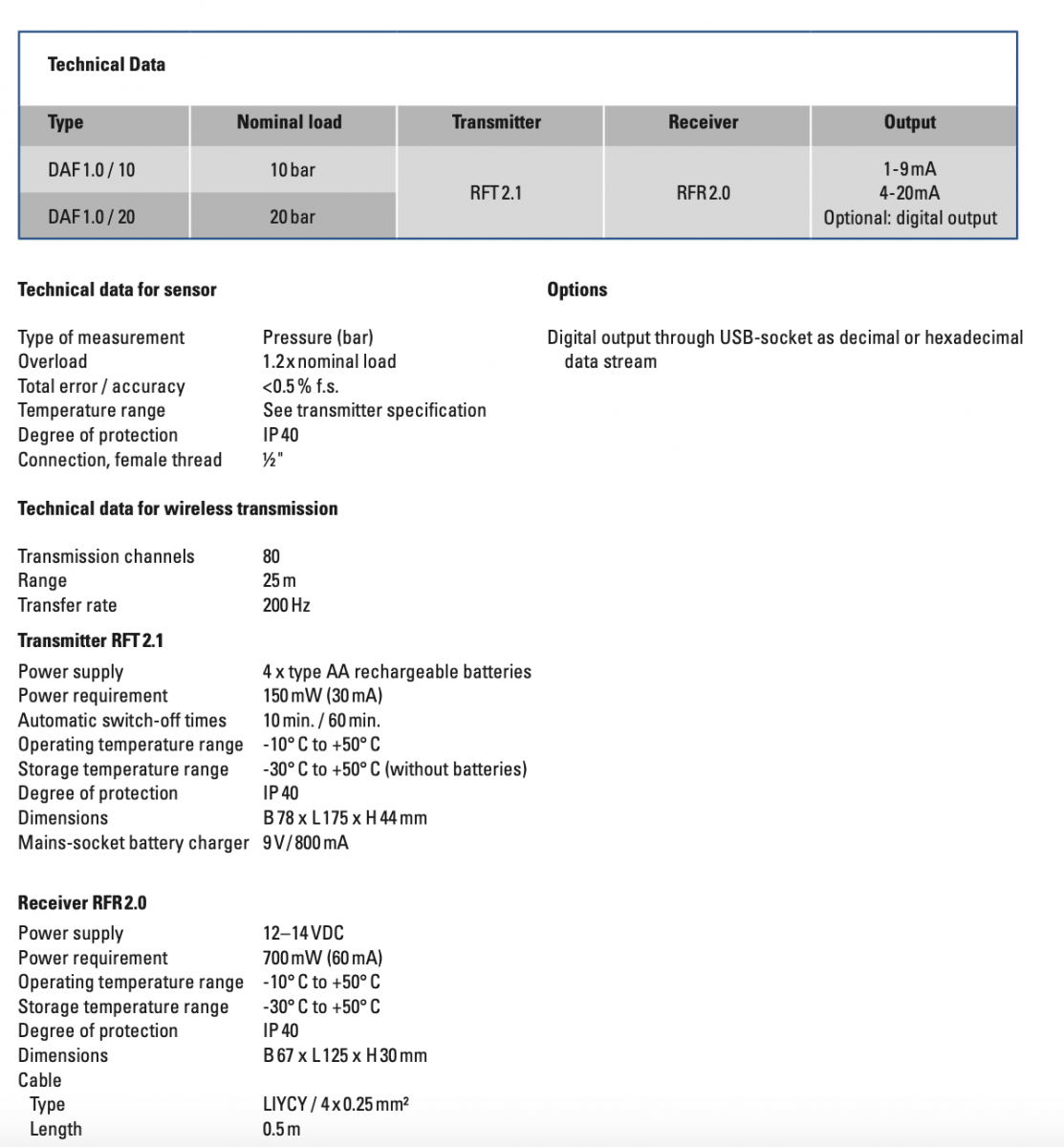

Description DAF

The wireless pressure measurement system consists of a sensor with an in- tegral transmitter, and a receiver in separate housings. Measurement signals are transmitted by a 2.4GHz radio link. The measurement system has been specially designed for measuring the pressures in motor vehicle braking sy- stems. The output at the receiver is available as a current signal or as a digital data stream.

The sensor with its integral transmitter is installed in a handy housing with a protective frame. The system is battery powered. The batteries are charged using the mains-socket battery charger supplied.
The system has two operating modes with different automatic switch-off times. It also incorporates fault recognition algorithms which can detect transmitter failure, radio interference, and if the receiver is out of range.

I Nominal loads: 10 and 20 bar
I Compact design
I Wireless transmission
I Integral rechargeable batteries
I Supplied with mains-socket battery

charger
I Choice of switch-off times I Fault recognition

Applications

I Checking brake line pressures
