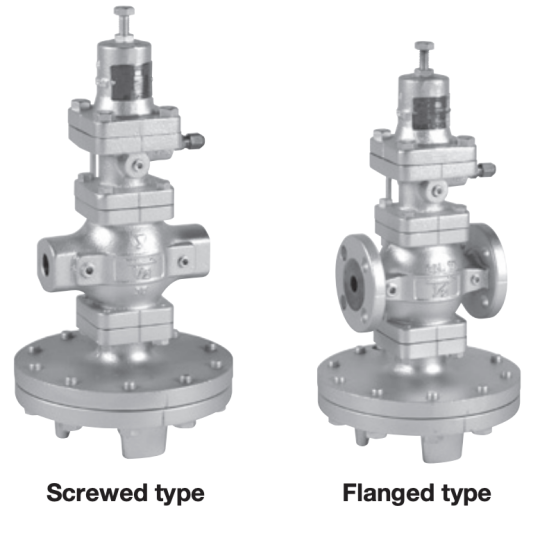

Pressure Reducing Valve GP-2000 YOSHITAKE
Pressure Reducing Valve GP-2000 YOSHITAKE, GP-2000 YOSHITAKE, GPK-2001 YOSHITAKE, GPK-2003 YOSHITAKE, GDK-2000 YOSHITAKE
-
Liên hệ
-
650
- Thông tin sản phẩm
- Bình luận
Pressure Reducing Valve GP-2000 YOSHITAKE, GP-2000 YOSHITAKE, GPK-2001 YOSHITAKE, GPK-2003 YOSHITAKE, GDK-2000 YOSHITAKE
| Features | For steam, large capacity, great accuracy | |
|---|---|---|
| Type | Pilot operated diaphragm type | |
| Specifications | Product type | Pilot-operated type |
| Nominal size | 15A (1/2") - 200A (8") | |
| Application | Steam | |
| End connection | JIS Rc or NPT screwed,JIS 20K RF flanged,JIS 10K FF flanged, ASME Class 150 or 300 flanged | |
| Inlet pressure | 0.1 - 2 MPa (0.1 - 1.0 MPa for JIS 10K) | |
| Reduced pressure | 0.02 - 1.7 MPa (*) | |
| Max. temperature | 220 degree(C) | |
| Reduced pressure | 85% or less of the inlet pressure(gauge pressure) | |
| Min. differential pressure | 0.05 MPa | |
| Max. pressure reduction ratio | 20 : 1 | |
| Working temperature | Max. 220 degree(C) | |
| Valve seat leakage | 0.01% or less of rated flow | |
| Material | Body | Ductile cast iron |
| Main valve, valve seat | Stainless steel | |
| Pilot valve, pilot valve seat | Stainless steel | |
| Diaphragm | Stainless steel | |
