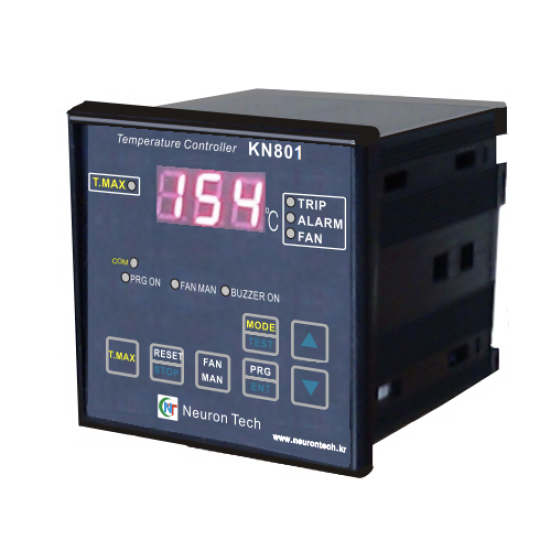

Relay RTD KN801 Neuron Tech, KN801 Neuron Tech, Relay RTD KN801, Neuron Tech

DIMESION
100(W)X100(H)X132(D)mm
DIMESION
100(W)X100(H)X132(D)mm
◆
ACCURACY
+/- 0.5℃(Full Scale)
ACCURACY
+/- 0.5℃(Full Scale)
◆
AMBIENT TEMPERATURE
OPERATION -20 to 60℃
AMBIENT TEMPERATURE
OPERATION -20 to 60℃
◆
TEMPERATURE MEASURING RANGE
-50~250℃
TEMPERATURE MEASURING RANGE
-50~250℃
◆
OUTPUT CONTACTS CAPACITY
TRIP,ALARM,FAULT AC 250V 5A (Resistance Load)
FAN AC 250V 10A (Resistance Load)
CONTACT DC 30V 5A (Resistance Load)
OUTPUT CONTACTS CAPACITY
TRIP,ALARM,FAULT AC 250V 5A (Resistance Load)
FAN AC 250V 10A (Resistance Load)
CONTACT DC 30V 5A (Resistance Load)
◆
ANALOG OUTPUT
DC 4~20mA (Load Resistance Max 600Ω)
RANGE (0~200℃) (INPUT/OUTPUT ISOLATION)
ANALOG OUTPUT
DC 4~20mA (Load Resistance Max 600
RANGE (0~200 (INPUT/OUTPUT ISOLATION)
Ω)
℃)
◆
INSULATION RESISTANCE
500V DC 100M ohm Minimum
INSULATION RESISTANCE
500V DC 100M ohm Minimum
◆
DATA STORAGE
10YEARS
DATA STORAGE
10YEARS
◆
POWER CONSUMPTION
7VA
POWER CONSUMPTION
7VA
◆
SERIAL COMMUNICATION
RS-485 MODBUS RTU
(INPUT/OUTPUT ISOLATION)
SERIAL COMMUNICATION
RS-485 MODBUS RTU
(INPUT/OUTPUT ISOLATION)
◆
INPUT MEASUREING CYCLE
100m SEC
INPUT MEASUREING CYCLE
100m SEC
◆
INPUT
1 INPUT Pt100Ω-3Wires (DIN IEC 751)
INPUT
1 INPUT Pt100Ω-3Wires (DIN IEC 751)
◆
AMBIENT HUMIDTIY
OPERATION 10 to 90% RH
AMBIENT HUMIDTIY
OPERATION 10 to 90% RH
◆
TEMPERATURE INDICATION
1℃
TEMPERATURE INDICATION
1℃
◆ WEIGHT
