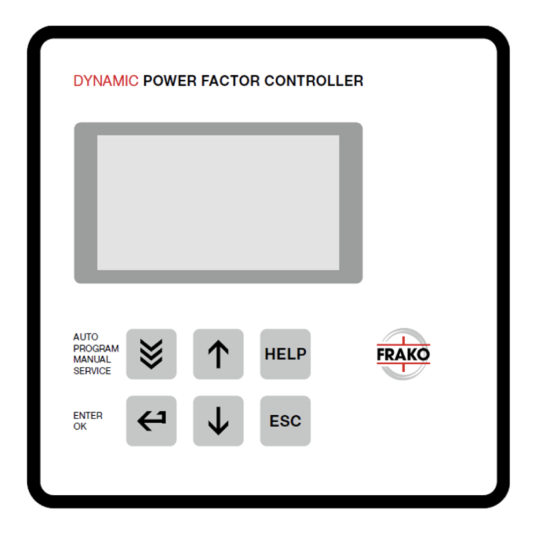

Type PFC-12TR-1

PFC-12TR-1-RS485

Part No. 39-29060

39-29061

Supply voltage (L-N / L-L) 110-440 V AC, ± 15%

Consumption max. 5 VA

Display 128 x 64 Pixel

Voltage measurement L-N / L-L

Voltage ranges 30-440 V AC L-N / 50-760 V AC L-L

Tolerance -15 / +10 %

Frequency 42-80 Hz

Sampling rate 10 kHz (bei 50 Hz)

Current measurement Single phase

Current ranges x / 5 A (x / 1 A)

Response current 50 mA (10 mA)

Maximum current 6 A

Consumption of current measurement ca. 0.2 VA

Switching outputs (relay) 12

Switching capacity max. 250 V / 1.000 W

Fusing 10 AT

Mechanical lifetime >107 switching cycles

Electrical lifetime >105 switching cycles

Switchting outputs (transistor) 12

Switching voltage 5-30V DC

Switching current max. 50 mA

Alarm relay (switching capacity) 1 (max. 250 V / 1.000 W)

Digital input (tariff switching) -

●

Interface (communication) -

RS485

Supported communication protocolls

-

Modbus RTU, Modbus KTR, ASCII Out, Master Mode, Slave Mode, Slave Hybrid

Controller Networking -

●

Dimensions (W x H x D) 144 x 144 x 53 mm

Weight 1.000 g

Protection degree according to IEC 60529 front IP54, back IP20

Mounting front plate

Connection cross-sections 0.08-2.5 mm2 (solid, stranded and fine-stranded) 1.5 mm2 (pin cable lug, wire end sleeve)

Operating temperature range -10 ... +55 °C

-10 ... +50°C

Storage temperature range -20 ... +60 °C

Relative humidity max. 95% without condensation

Altitude max. 2,000 m

Degree of pollution 2

Mounting position any

EMI Guidelines 2004/108/EG & 2006/95/EG

Device security IEC/EN 61010-1 & IEC/EN 61010-1-08

Protection class I (with protective conductor)

Interference immunity DIN EN (IEC) 61326-1, industrial environment

Emitted interference DIN EN (IEC) 61326-1, class B: living environment DIN EN (IEC) 61326-1, class A: industrial environment
