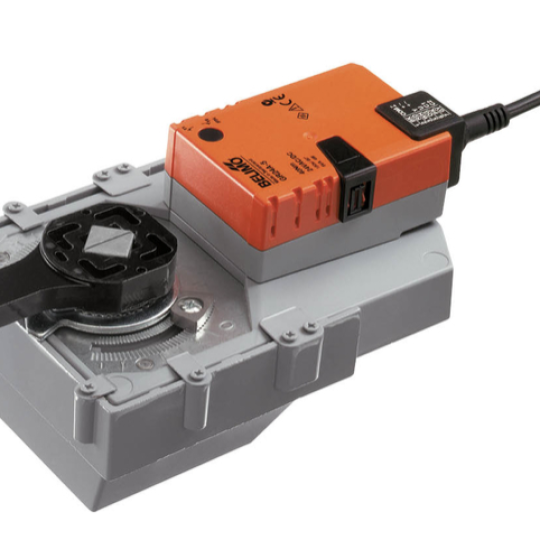

Thiết bị truyền động GR24A-SR-7 BELIMO, GR24A-SR-7 BELIMO, GR24A-SR-7, BELIMO

Specifications

Voltage AC/DC

AC/DC 24 V

Power consumption (running)

4.5 W

Power consumption (holding)

1.5 W

Power Consumption For Wire Sizing

6.5 VA

Connection Supply Control

Cable 1 m, 4 x 0.75 mm²

Torque

40 Nm

Control type

DC 2...10 V

Manual override

With push-button, can be locked

Running time (motor)

150 s / 90°

Protection category

IP54

Degree Of Protection NEMA

NEMA 2

Enclosure Type

UL Enclosure Type 2

Ambient Temperature

-30...50°C [-22...122°F]
