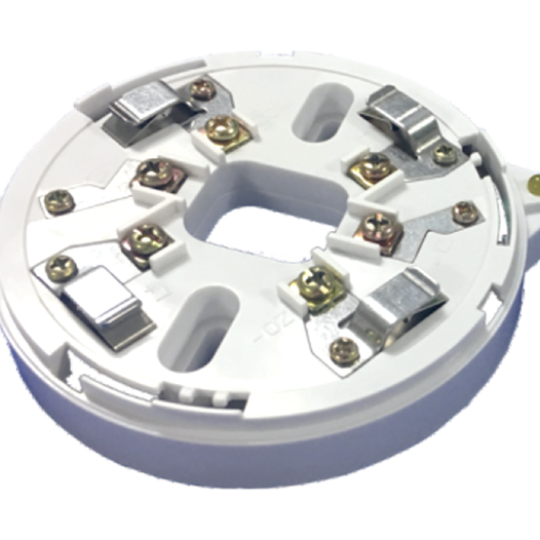

TX7232 Base Mount Short Circuit Isolator Tanda
The TX7232 Base Mount Short Circuit Isolator manufactured base on the requirement of EN 54 part 17, European Standard. In the event of short circuit on the detection loop the TX7232 Isolators either side of the loop will detect the problem and open circuit and isolates the faulty part of the loop, enabling other devices on the unaffected part of the loop to operate normally. The isolator will continue to monitor for the fault to be repaired, once the fault is cleared the isolator will automatically reinstate the effected part of the loop.
-
Liên hệ
-
709
- Thông tin sản phẩm
- Bình luận
TX7232 Base Mount Short Circuit Isolator Tanda, TX7232 Tanda, Tanda, TNA Technology
Listed : LPCB / CE-CPR
Compliance : EN54-17:2005
Power Rating
Input Voltage : 24VDC [16V to 28V]
Current Consumption : Standby:≤0.15mA, Alarm: ≤2mA
Module
Protocol : T&A
Number of monitored : Max 70 Devices
Output Impedance : 480 ohms
Indicator Status : Normal: Single blink/Active: Steady-on
Material / Colour : ABS / White Glossy finishing
Dimension / Height : Diameter:100.7 mm/34mm
Weight : 108g (with Base), 91g (without Base)
Humidity : 0 to 95% Relative Humidity, Non condensing
