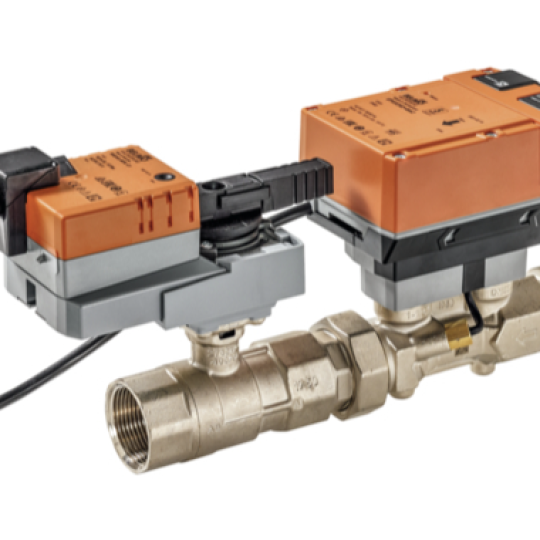

Van điều khiển kết hợp EPIV D25 loại EP025R2+BAC Belimo, EP025R2+BAC Belimo, EP025R2+BAC, Van điều khiển EP025R2+BAC

Valve specifications

Pattern

2-way

V'nom [l/s]

0.97

Flow rate adjustable

25...100% of V'nom

Fluid

Cold and warm water, water with glycol up to max. 60% vol.

Flow temperature

-10...120°C [14...248°F]

Close-off pressure

1400 kPa

Differential pressure Δpmax

350 kPa

Differential pressure note

200 kPa for low-noise operation

Flow characteristic {Tools}

Equal percentage

Leakage rate {Tools}

Air-bubble tight, leakage rate A

Pipe connection

Internal and external thread

Actuator specifications

Voltage AC/DC

AC/DC 24 V

Power consumption (running)

4 W

Power consumption (holding)

3.7 W

Power Consumption For Wire Sizing

6.5 VA

Connection Supply Control

Cable 1 m, 6x 0.75 mm²

Control type

• BACnet MS/TP
• Modbus RTU
• MP-Bus
• DC 2...10 V
• DC 0.5...10 V
• Hybrid (communicative / analogue)

Protection category

IP54
