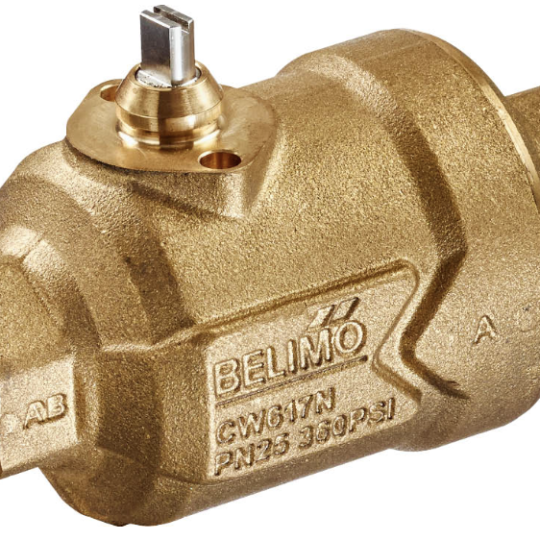

Van PI Zone Valve C215QP-B Belimo, C215QP-B Belimo, C215QP-D, C215QPT-B, C215QPT-D, C220QP-F, C220QPT-F, C220QPT-G, C225QPT-G

Type

C215QP-B C215QP-D C215QPT-B C215QPT-D C220QP-F C220QPT-F C220QPT-G C225QPT-G

Cold and warm water, water with glycol up to max. 50% vol.

-20...120°C

with actuator 2...90°C

16...350 kPa

1400 kPa

equal percentage (VDI/VDE 2178), optimised in the opening range

±5% with a pressure value of 35...350 kPa ±10% with a pressure value of 16...35 kPa

air-bubble tight, leakage rate A (EN 12266-1) See installation instruction
90°
Operating range 15...90°

Internal thread according to ISO 7-1
upright to horizontal (in relation to the stem) maintenance-free

Brass
Stainless steel Stainless steel EPDM O-ring PTFE, O-ring EPDM EPDM

V'nom = nominal flow with valve completely opened
V'max = maximum flow, set by the angle of rotation limitation on the actuator

www.belimo.com

Sv = Rangebility kvs/kvr
